EG4 12kPV Hybrid Inverter
$3,499.00
MAPP: This manufacturer enforces a Minimum Advertised Pricing Policy which means they do not allow us to advertise prices below a certain level. Our actual sell price may be below their MAPP. Please send us an enquiry or call for your price.
- Description
- More Info
Description
Description

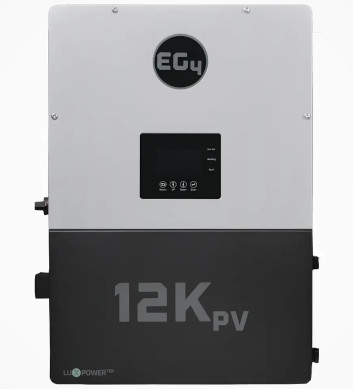

Transform your existing power setup or build a new energy system with the EG4 12kPV, a 48V split-phase hybrid inverter/charger. This system harnesses up to 12kW of solar energy, delivering 8kW for powering loads while sending excess power to charge your batteries. Perfect for homes and small business installations, the system allows linking up to 10 units together.
The EG4 12kPV incorporates identical technology and programming as its premium counterpart, the EG4 18kPV hybrid inverter. The 12kPV offers a smaller footprint and cost-effective solution, featuring expandable architecture. System management and updates can be handled remotely through the EG4 monitoring website/app, providing convenient system oversight and adaptability.
Features and Benefits
“Share Battery” Setting:
Simplifies installation, saving time and money when paralleling multiple inverters
Design:
Grid interactive or off-grid configurations
Supports High Surge Loads:
Capable of starting a 5-ton air conditioner without soft-start
Monitoring and Updates:
Use the EG4 monitoring app/website to monitor system and battery performance and update system firmware
Load Imbalance Handling:
Can manage up to 4,000W imbalance for 30 minutes
Modular Design:
Allows for easy expansion and scalability as power needs grow
Generator Compatibility:
Integrated generator input for added system reliability
RSD/ESS Shutdown:
Ensures safety with rapid shutdown capabilities
- AC Output: 8kW continuous
- PV Input: 12kW PV, recommended maximum 15kW array
- Number of MPPTs: 2 (25A each)
- Parallel: up to 10 units for 80kW
- Dimensions: 29.5×20.5×11.2 in. (750×520×285mm)
- Weight: 110 lbs. (50kg)
- Warranty: 10 year
UL 1741 SB | NEMA 4X | CEC | CSIP
