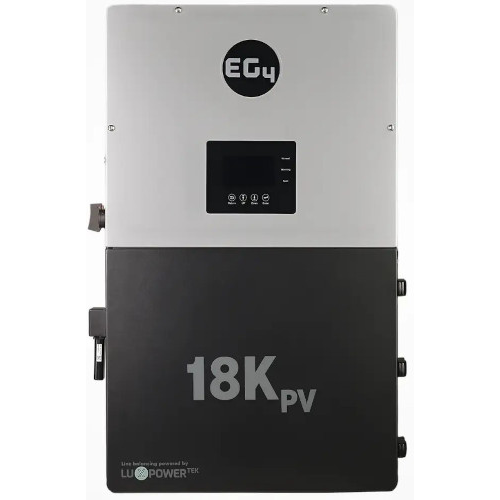

EG4 18kPV Hybrid Inverter
$4,898.00
MAPP: This manufacturer enforces a Minimum Advertised Pricing Policy which means they do not allow us to advertise prices below a certain level. Our actual sell price may be below their MAPP. Please send us an enquiry or call for your price.
- Description
- More Info
Description
Description
The EG4 18kPV hybrid inverter/charger delivers comprehensive power management for solar energy systems requiring versatility and performance. Featuring EMP protection against electromagnetic disruptions, it functions in standalone, grid-assist, or grid-tie configurations, enabling self-sufficient power generation, grid backup capability, or power export options.
Equipped with 18kW solar input and 12kW output capacity, this inverter delivers substantial power handling and supports parallel connection of up to 10 units for increased output. Its 600V DC capability and triple MPPT design maximize power conversion and reduce wiring complexity. The 18kPV delivers split-phase 120/240V or 120/208V power and works compatibly with 48V EG4 batteries or alternative brands. Integrated Wi-Fi connectivity enables system monitoring through the EG4 application, serving residential and commercial installations prioritizing solar utilization and power autonomy.
- All-In-One Hybrid Inverter:
Capable of running entirely off the grid, using grid electricity, or selling power back to the grid - Dual Functionality:
Utilize both grid-tie and off-grid modes simultaneously - High Frequency, Split-Phase Output:
Allows for 120/240V single unit or 120/208 service operation. - Remote Monitoring:
Track performance via EG4’s mobile app or website - Easy Control:
User-friendly, configurable LCD display
AC Output: 12kW continuous
PV Input: 18kW PV
Number of MPPTs: 3 (600VDC max input each)
Parallel: Up to 10 units for a combined 120kW output
DC Input Voltage Range: 100–600 VDC
Dimensions: 34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight: 121.25 lbs (55kg)
Warranty: 10 year
UL 1741 SB | NEMA 4X | CEC | CSIP
