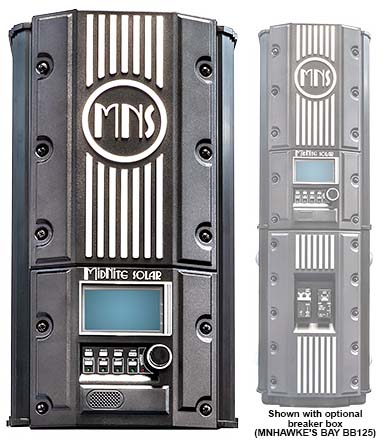

MidNite Solar Hawke’s Bay 120 Charge Controller

Description

The MidNite Solar MNHawke’s Bay 120 is a powerful 120 amp MPPT solar charge controller that’s ideal for larger DC coupled off grid and grid hybrid battery based systems. Capable of accepting up to 6,600 watts of solar on a 48 volt system, it has the widest MPPT tracking range available – 185 – 585 VDC. And it makes installation faster and easier because typically no combiner box is needed.

Includes a battery temperature sensor and external battery voltage sensing. Display can be remotely mounted and a second display added. Data logging stores 380 days of data taken at 5 minute intervals 24 hours a day. Local control and monitoring available within normal blue tooth range from smart phone application software.

The add-on Hawke’s Bay Breaker Box (MNHAWKE’S BAY BB-125), protects against excessive battery voltage excursions.

Key Features of the MNHawke’s Bay 120

• Least expensive high output MPPT charge controller, separately and with available options
• Maximum output current: 120 amps
• Wide MPPT tracking range: 185 to 585 VDC
• Can accept up to 6,600 watts of solar
• Maximum PV Open Circuit Voltage (VOC): 600VDC
• 98% power conversion efficiency on typical systems
• 40v to 65v battery voltage regulation setpoints
• Bulk, float and equalization charging
• Display can be relocated for remote viewing, and a second display can be added
• More auxiliary input/outputs than anyone else: 3
• Seamlessly integrate with other MidNite product via CAN bus communications
• 380 days of 24 hour datalogging at 5 minute intervals
• Seamlessly integrate with other MidNite products via CAN bus communications
• Vented and fan cooled
• Quiet and reliable
• Optional MidNite ComBox communicates with many third party lithium batteries
• Optional plugin UL1699B listed arc fault, NEC2020 compliant ground fault and Sunspec compliant rapid shutdown transmitter (module or string level)
• 5 year warranty
• Made in USA
