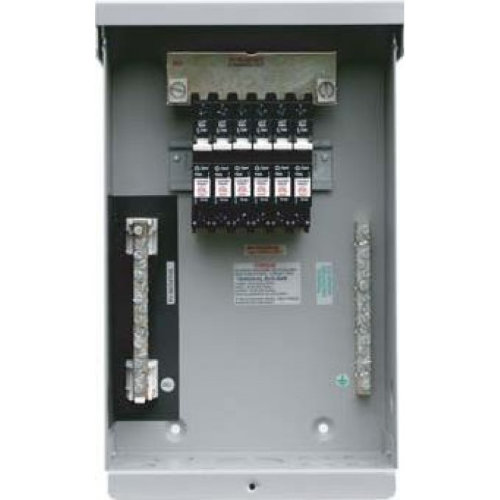

MidNite Solar MNPV6 Combiner Box

Description

The MidNite Solar MNPV6 is used for 150Vdc charge controllers and 600 VDC grid-tie inverters.  Will accept six 150 VDC (MNEPV) breakers or four 600 VDC fuse holders.

• Breakers or fuses and fuse holders sold separately
• Gray aluminum type 3R outdoor rainproof enclosure with insulating dead front and stainless steel hardware.
• Multiple mounting options: vertical wall mount, sloped roof mount to 14 degrees (3/12 pitch) or pole mount.
• Knockouts that accept waterproof strain reliefs, conduit or panel mount MC type connectors.
• Knockouts for lightning arrestors.
• String input wire range: 14-6 AWG.
• Output wire range 14 to 1/0 AWG.
• Maximum overcurrent protection device rating: 30 amp with fuses, 63 amps with 150-volt breakers and 50 amps with 300-volt breakers.
• 60 amps maximum output.
• Will accept both MidNite Solar and Delta style lightning arresters.
• Lockable in the off position.
• ETL listed to UL1741for use in the US and Canada.

Use an MNPV3 if you need 1 to 3 strings using breakers up to 150volts or 1 to 2 strings using fuses, or the MNPV12 if you need 7 to 12 strings using breakers to 150 volts or 10 strings using fuses up to 600 volts.
