MidNite Solar Big Baby Box PV Combiner
$54.00
- Description
- Additional information
- Spec Sheets
Description
Description

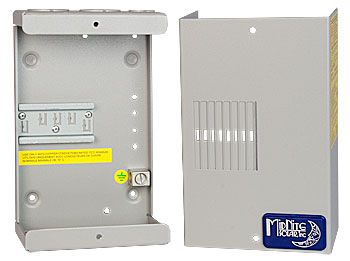

MidNite Solar Big Baby Box Enclosure
The original Baby box has been a huge success, but it’s biggest feature is also it’s downfall – in some applications it’s just too small. That’s when you need the MidNite Big Baby Box. It is about twice as wide as the Baby Box, and includes a ground box lug and mounting provisions for the MidNite Solar short insulated and ground busbar.
The Big Baby Box is a gray powered-coated aluminum general use enclosure that holds up to four 13mm wide MidNite MNEPV din rail breakers from 1-63 amps. Insulated bus MNSBB-R, MNSBB-B or MNSBB-W (red, black or white) not included. Ground terminal accepts up to 1/0 AWG.
ETL listed for US & Canada.
Additional information
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 9 × 6 × 4 in |

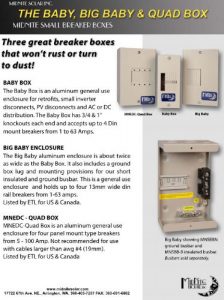

Spec Sheets
